Email this article Regenerative osteogenesis at the interface of tissue-osteoplastic material
- Authors: Presnyakov E.1,2,3, Kurbonov K.1,2,3, Sorochanu I.1,2,3, Zhemkov N.1,2,3, Galbatsov D.1,2,3, Podluzhny P.1,2,3, Larionov I.1,2,3, Bessonov V.1,2,3, Emelin A.1,2,3, Bozo I.1,2,3, Deev R.1,2,3
-
Affiliations:
- Russian Scientific Center for Surgery named after Academician B.V. Petrovsky
- Research Institute of Human Morphology
- Histograft LLC
- Section: Original Study Articles
- Submitted: 04.04.2024
- Accepted: 23.04.2024
- Published: 07.06.2024
- URL: https://j-morphology.com/1026-3543/article/view/629963
- DOI: https://doi.org/10.17816/morph.629963
- ID: 629963
Cite item
Open Access
Access granted
Subscription or Fee Access
Abstract
BACKGROUND: About a half a century ago, the concept of physiological regeneration of bone tissue was developed, which is based on the functioning of basic multicellular units (BMUs). Later it was shown that such an approach can also be used to understand the regularities of reparative regeneration. Bone grafting with the use of gene-activated synthetic replacement materials introduces additional features into the reparative process, consisting in the fact that the material itself becomes a direct participant in the process. Bone graft sequentially undergoes resorption, metabolism, becomes a matrix on the basis of which the basic multicellular units implement the process of regenerative osteogenesis.
AIM: to reveal the work of BMUs in a human bone wound during implantation of a gene-activated osteoplastic material from octacalcium phosphate. The material was 16 biopsies obtained during two-stage dental implantation 6 months after bone grafting.
METHODS: The results were obtained using microfocal computed tomography, histological and immunohistochemical studies, histomorphometry with statistical processing of the data obtained.
RESULTS: According to the results of the study, both in the case of using an ordinary product and when using a gene-activated material based on octacalcium phosphate (OCP), the bone regenerate was represented by a multi-tissue structure formed by bone beams surrounding non-resorbed fragments of bone replacement products. In histomorphometric analysis of gene-activated material, the median area of unresorbed granules was 0,039 mm2 (Q1=0,013 mm2; Q3=0,079 mm2), and the median area of osteoclasts was 67 cells/mm2 (Q1=22 cells/mm2; Q3=235 cells/mm2). In the group using an ordinary product – 0,029 mm2 (Q1=0,009 mm2; Q3=0,068 mm2 and 15 cells/mm2 (Q1=0 cells/mm2; Q3=79 cells/mm2), respectively.
CONCLUSION: It has been established that BMUs that are in various phases of functional activity - resorption, reversion, formation and rest can be detected at the gene-activated material-bone interface. The last phase appears only in those cases when the components of the material do not induce osteogenesis.
Full Text
ADDITIONAL INFORMATION
Funding source. The study had no sponsorship and was conducted with careful consideration.
Competing interests. E.V. Presnyakov, I.Y. Bozo, R.V. Deev are current employees of Gistograft LLC.
Authors’ contribution. All authors confirm that their authorship meets the international ICMJE criteria (all authors made a significant contribution to the development of the concept, conduct of the study and preparation of the article, read and approved the final version before publication). The largest contribution is distributed as follows: E.V. Presnyakov - collection and processing of material, writing the text; H.R. Kurbonov - literature review, collection and processing of material, writing the text; I.P. Soroceanu - literature review, collection and processing of material, writing the text; N.I. Zhemkov - collection and processing of material, writing the text; D.F. Galbatsov – collection and processing of material, writing the text; P.S. Podluzhny – collection and processing of material; I.A. Larionov – conducting microfocus computed tomography, processing the results obtained; V.B. Bessonov – conducting microfocus computed tomography, processing the results; A.M. Emelin – collection and processing of material, writing the text; AND I. Bozo – study concept and design, writing and editing; R.V. Deev—conception and design of the study, writing and editing the text.
Fig. 1. Formula for calculating the resorption index.
Fig. 2. Istribution of granules of osteoplastic material in the biopsy specimen: 1 – fragments of the «Histograft» material; 2 - bone regenerate. Scale bar 1 mm. mCT scan
Fig. 3. Features of bone regenerate using CCM (left column) and GAM (right column): 1 – fragments of osteoplastic material; 2 – newly formed bone tissue; 3 – connective tissue with varying degrees of ordering of collagen fibers; 4 – osteoid; 5 – collagen fibers (brown); 6 – argyrophilic fibers (black); 7 – multinucleated cells resorbing material; 8 – macrophages. Staining: A, G – hematoxylin and eosin; B – trichrome according to Mallory; C, D, H – Masson-Goldner trichrome, E, F – impregnation with silver nitrate. The scale bar is indicated in the images
Fig. 4. Surface osteoblastic activity when using OCP-based osteoplastic material. 1 – newly formed bone tissue; 2 – OCP microgranules; 3 – dense fibrous connective tissue; 4 – active osteoblasts synthesizing bone matrix; 5 – macrophages. Scale bar: A – 20 µm; B – 50 µm. Staining: Masson-Goldner trichrome. The scale bar is indicated in the images.
Fig. 5. Example of an IHC reaction with antibodies to CD31 (top row) and to CA2 (bottom row). Endotheliocytes are cells with a cytoplasmic staining pattern. Osteoclasts are large multinucleated cells with a cytoplasmic staining pattern. The reaction product is brown. A, C – material based on CCM; B, D – material based on OCP. Counter-staining with Mayer's hematoxylin. The scale bar is indicated in the images

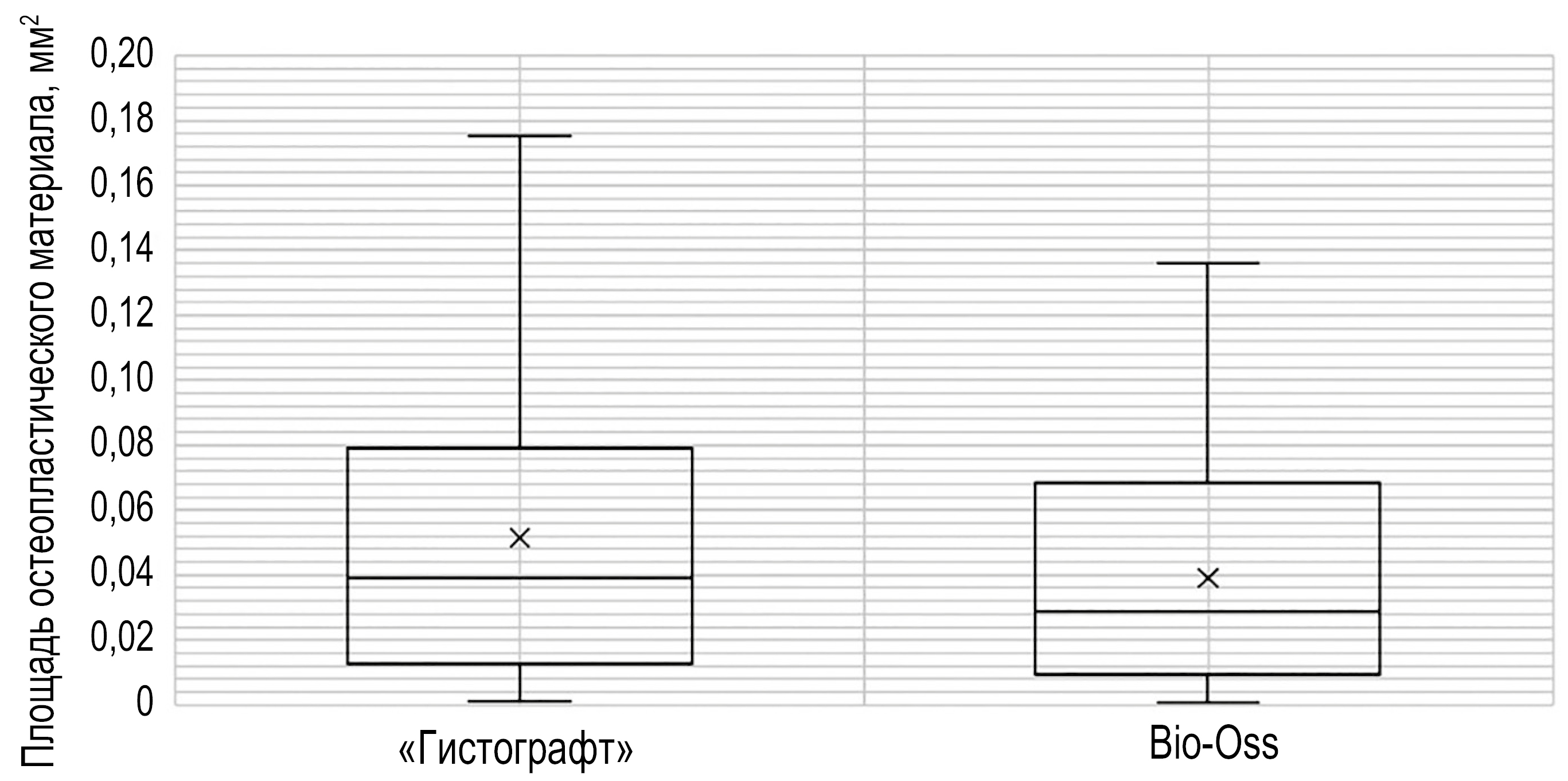

Fig. 6. The area of non-resorbed fragments of osteoplastic materials 6 months after implantation. “Bio-Oss” – ordinary products based on xenogeneic bone matrix; “Histograft” – gene-activated synthetic products based on octacalcium phosphate

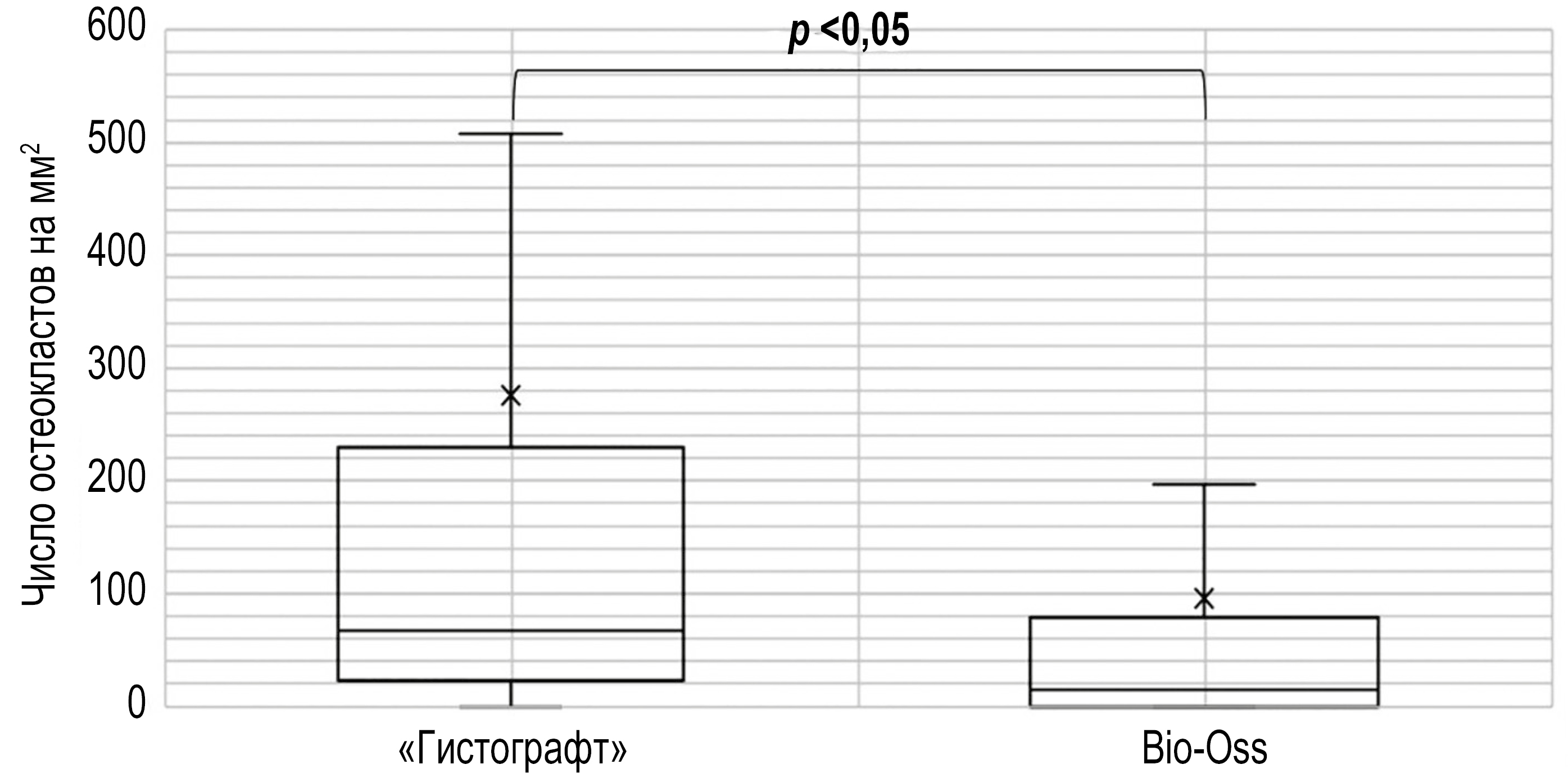

Fig. 7. Osteoclast index 6 months after implantation. “Bio-Oss” – ordinary products based on xenogeneic bone matrix; “Histograft” are gene-activated synthetic products based on octacalcium phosphate
About the authors
Evgeniy Presnyakov
Russian Scientific Center for Surgery named after Academician B.V. Petrovsky; Research Institute of Human Morphology; Histograft LLC
Author for correspondence.
Email: uvpres@gmail.com
ORCID iD: 0000-0003-1546-5129
https://www.researchgate.net/profile/Evgeny-Presnyakov
врач-патологоанатом, научный сотрудник R&D отдела, научный сотрудник лаборатории патологии и морфологии опорно-двигательного аппарата
Russian FederationKhurshed Kurbonov
Email: hakagureo@gmail.com
Irina Sorochanu
Email: ipsorochanu@gmail.com
Nikita Zhemkov
Email: zhemkovni@gmail.com
Dzhamal Galbatsov
Email: dzhamal.galbatcov61@gmail.com
Pavel Podluzhny
Email: paul_podluzhny@mail.ru
Ivan Larionov
Email: ivan.al.larionov@gmail.com
Viktor Bessonov
Email: vbbessonov@yandex.ru
Aleksey Emelin
Email: eama40rn@gmail.com
Il'ya Bozo
Email: bozo.ilya@gmail.com
Roman Deev
Email: romdey@gmail.com
References
- Gololobov V.G., Deev R.V. Stem stromal cells and osteoblastic cell differon. Morphology. 2003;123(1):9-19. (In Russ). EDN: WJKHPL
- Gololobov V.G., Dulaev A.K., Deev R.V., et al. Morphofunctional organization, reactivity and regeneration of bone tissue. Saint-Petersburg: S.M. Kirov Military Medical Academy; 2006. (In Russ). EDN: QKOLRV
- Gololobov V.G., Dedukh N.V., Deev R.V. Skeletal tissues and organs. In: Danilov R.K., red. Rukovodstvo po gistologii. 2nd edition. Saint-Petersburg: SpetsLit; 2011. P. 238-322. (In Russ).
- Deev R.V., Bozo I.Y., Isaev A.A., Drobyshev A.Y. Ordinary and Activated Bone Grafts: Applied Classification and the Main Features. BioMed Research International. 2015;2015: 365050. EDN: VEQAAD doi: 10.1155/2015/365050
- Sarkisov D.S., Perov Yu.L., red. Microscopic technique: a guide for doctors and laboratory assistants. Moscow: Meditsina; 1996. (In Russ).
- Shurygina I.A., Shurygin M.G., Rodionova L.V., et al. Carbonic anhydrase as a marker of osteoclast activity during repair of a long bone fracture zone. Byulleten' Vostochno-Sibirskogo nauchnogo tsentra Sibirskogo otdeleniya Rossiyskoy akademii meditsinskikh nauk. 2012;5-2(87):120-122. (In Russ). EDN: PJBNSN
- Flati G., Di Stanislao C. Chirurgianellapreistoria. Parte I. Provincia Med Aquila. 2004;2:8–11.
- Vinogradova T.P., Lavrishcheva G.I. Bone regeneration and transplantation. Moscow: Meditsina; 1974. (In Russ).
- Yasonov S.A. History of cranioplasty. In: Prityko A.G., red. Peredovye tekhnologii meditsiny na styke vekov. Moscow: Elikta print; 2000. P. 191-197. (In Russ).
- Macewen W. The growth of bone: observations on osteogenesis: an experimental inquiry into the development and reproduction of diaphyseal bone. Glasgow: James Macelhose and Songs; 1912.
- Bonartsev A.P., Muraev A.A., Deyev R.V., Volkov A.V. Material-Associated Bone Resorption. Modern Technologies in Medicine. 2018;10(4):26-33. EDN: YUVDQD doi: 10.17691/stm2018.10.4.03
- Deev R.V. Analysis of reparative regeneration of skull roof bones. Morphology. 2007;132(6):64-69. (In Russ). EDN: MUYHHJ
- Deev R.V., Plaksa I.L., Mavlikeev M.O., et al. Early stages of regenerative histogenesis in the periosteal part of the human callus. Morphology. 2018;153(2):63-69. (In Russ). EDN XNKVDF
- Volkov A.V., Bol'shakova G.B. Histomorphometry of bone tissue in regenerative medicine. Clinical and Experimental Morphology. 2013;3(7):65-72. (In Russ). EDN: RGROAZ
- Bozo I.Ya., Mayorova K.S., Drobyshev A.Yu., et al. Comparative evaluation of biological activity of genactivated osteoplastic materials from octacalcium phosphate and plasmid DNA. Genes & cells. 2016;11(4):34-42. (In Russ). EDN: YHENYH doi: 10.23868/201707028
