Bone tissue status in early stages of recovery after thermal exposure
- Authors: Gorokhova A.V.1, Nasibov T.F.1, Porokhova E.D.1,2, Bariev U.A.1, Nosov V.E.1, Pakhmurin D.O.1,2, Anisenya I.I.2,3, Sitnikov P.K.2,3, Khlusov I.A.1,2
-
Affiliations:
- Siberian State Medical University
- Tomsk State University of Control Systems and Radioelectronics
- Тomsk National Research Medical Center of the Russian Academy of Sciences
- Issue: Vol 162, No 3 (2024)
- Pages: 298-315
- Section: Original Study Articles
- Submitted: 05.08.2024
- Accepted: 01.11.2024
- Published: 15.12.2024
- URL: https://j-morphology.com/1026-3543/article/view/634692
- DOI: https://doi.org/10.17816/morph.634692
- ID: 634692
Cite item
Abstract
BACKGROUND: Thermal ablation is a promising method for the treatment of bone tumors. However, to maximize the potential of this method, it is important to select the optimal dose/time ratio of high temperature exposure.
AIM: The aim of the study was to evaluate in vivo the response of rabbit bone tissue during early recovery (days 3 and 7) after local intraoperative hyperthermic ablation at 55–60°C in the medullary canal.
MATERIALS AND METHODS: The study used 6 outbred rabbits aged 15 weeks and weighing 3–4 kg. Animals were removed from the experiment on days 3 and 7 after local thermal ablation of the femoral diaphysis. Microscopic visual examination of bone tissue sections was performed after standard hematoxylin and eosin staining. In addition, the morphometric measurements were performed to determine area of non-mineralized bone matrix (Mallory staining); absorbance and area of osteoblast cytoplasm; absorbance and area of osteocyte nuclei (Einarson staining for nucleic acid detection). The results obtained were compared with those of the femur of the contralateral limb, which was not subjected to direct hyperthermia and served as a control. R-Studio, a free development environment for R programming language, was used to statistically process the data.
RESULTS: After high temperature exposure, histological sections of bone tissue stained with hematoxylin and eosin showed evidence of cellular abnormalities such as denucleated osteocytes and empty bone lacunae. Mallory staining showed no evidence of a negative effect of local thermal ablation on the intercellular bone matrix. Morphometry of Einarson stained sections showed an increase in osteoblast area on day 7 after exposure, with a decrease in their synthetic activity, signs of which were observed as early as day 3 of the experiment. There was also a decrease in the area and absorbance of osteocyte nuclei in the diaphysis of thermally ablated bones by day 3 after exposure. However, on day 7 after exposure, the area of nuclei in mature bone cells did not differ from the corresponding value in the contralateral limb. Considering the decrease in nuclei absorbance, the described changes may indicate colliquative necrosis of osteocytes.
CONCLUSIONS: Local intraoperative thermal ablation of the femoral diaphysis in rabbits at a marrow canal temperature of 55–60℃ reduces the absorbance of osteoblast cytoplasm and osteocyte nuclei in the early recovery period, reflecting damage to the organelles of bone cells and disruption of metabolic processes in these cells. However, there was evidence of remodeling of the damaged area, presumably caused by migration of endosteal and periosteal cells from the metaphysis, which had not been exposed to direct hyperthermia. The results obtained may be useful for choosing the optimal regime (dose and duration) of high temperature exposure to bone tissue tumors, given the higher sensitivity of malignant cells to heating.
Full Text
BACKGROUND
The treatment of bone tumors, including osteosarcoma and metastatic invasion, remains one of the most challenging areas in oncology and is the focus of modern medical research. However, according to Menéndez et al. [1], the standards for bone tumor treatment have changed little since the late 1970s. Therefore, the search for innovative and promising therapeutic approaches for such tumors remains a pressing issue.
Thermoablation is considered a treatment of choice for both benign and malignant musculoskeletal tumors [2], provided that the anatomical integrity of the bone and its regenerative capacity are preserved. At the same time, factors involved in the regeneration of non-tumorous tissues, such as bone morphogenetic protein-2 (BMP-2), may enhance the proliferation of malignant cells in microscopic residual osteosarcoma nodules [3]. Therefore, it is of critical scientific and practical importance to identify best high-temperature exposure parameters (dose and duration) within the range of 55–100 ℃, which can effectively eradicate tumor nodules while preserving the mechanical strength and regenerative potential of bone tissue. Previous studies have demonstrated that human bone tissue subjected ex vivo to hyperthermia in the 60–70 ℃ range retains its mechanical strength despite exhibiting moderate morphological signs of thermal damage [4].
AIM
To investigate the in vivo response of rabbit bone tissue in the early recovery period (on Days 3 and 7) following local intraoperative hyperthermic ablation at an intramedullary temperature of 55–60 ℃.
MATERIALS AND METHODS
Study design
A single-center, prospective, controlled, randomized, open-label, experimental study was conducted.
Eligibility criteria
Inclusion criteria. The study used 6 outbred rabbits aged 15 weeks and weighing 3–4 kg. Prior to the experiment, the animals underwent a 7-day quarantine in ambient conditions.1 After quarantine, the rabbits were randomly assigned to two study groups, with three rabbits in each group.
Non-inclusion criteria: signs of illness in animals, determined by a veterinary examination, including lethargy, loss of appetite, hair loss, skin and mucosal redness, itching, or ear mites.
Exclusion criteria: femoral fractures following thermoablation.
Study conditions
The study was conducted in the vivarium of the Central Research Laboratory of the Siberian State Medical University. The animals were housed individually in specialized labeled cages with bedding made of pre-sterilized dry wood shavings. The air temperature was maintained at 20–26 °C with a relative humidity of 40%–70%, under artificial lighting and forced ventilation. The rabbits were fed a standard, certified industrial feed (Biopro, DeltaFeeds, Russia) with a verified shelf life. Drinking water was available ad libitum.
Study duration
The study was conducted from August to November 2023. The assessment was performed during the early post-thermoablation period (Days 3 and 7), which is critical for subsequent reparative regeneration.
Description of medical intervention
Local intraoperative thermoablation of the right femur was performed in vivo using the Phoenix-2 local hyperthermia system (PromEl, Russia), developed at Tomsk State University of Control Systems and Radioelectronics [5]. The device is equipped with flexible heaters containing a resistive heating element that emits thermal energy when an electric current passes through it. Heat transfer to the target tissue occurs through conduction.
Premedication was carried out by intramuscular administration of 0.1% atropine (Moscow Endocrine Plant, Russia) at a dose of 0.5 mg/kg. General anesthesia was induced with an intravenous injection of a mixture of tiletamine and zolazepam (Zoletil 100, VIRBAC, France) at a dose of 0.2 mg/ kg, 15 minutes after premedication. During surgery, additional doses of Zoletil 100 were administered as needed, ensuring that the total dose did not exceed the pre-calculated maximum allowable dose of 10 mg/kg per procedure.
Surgical procedures adhered to aseptic protocols. After triple antiseptic treatment of the surgical field with Miraxiderm Tris (MIRALEK, Russia), a longitudinal skin incision (up to 8 cm) was made. A sharp dissection was performed to expose the femur through the fibers of the biceps femoris muscle, followed by hemostasis. The femur was skeletonized using a raspatory. Outside the thermoablation zone, a perforation (2 mm in diameter) was made with a drill for the intramedullary insertion of a Pt 100 thermal sensor (PromEl, Russia) to monitor the temperature in the bone marrow cavity. A circular flexible surface heater and a thermal insulation material were applied to the exposed bone to confine the thermoablation impact to the designated area, preventing the involvement of surrounding tissues (Fig. 1).

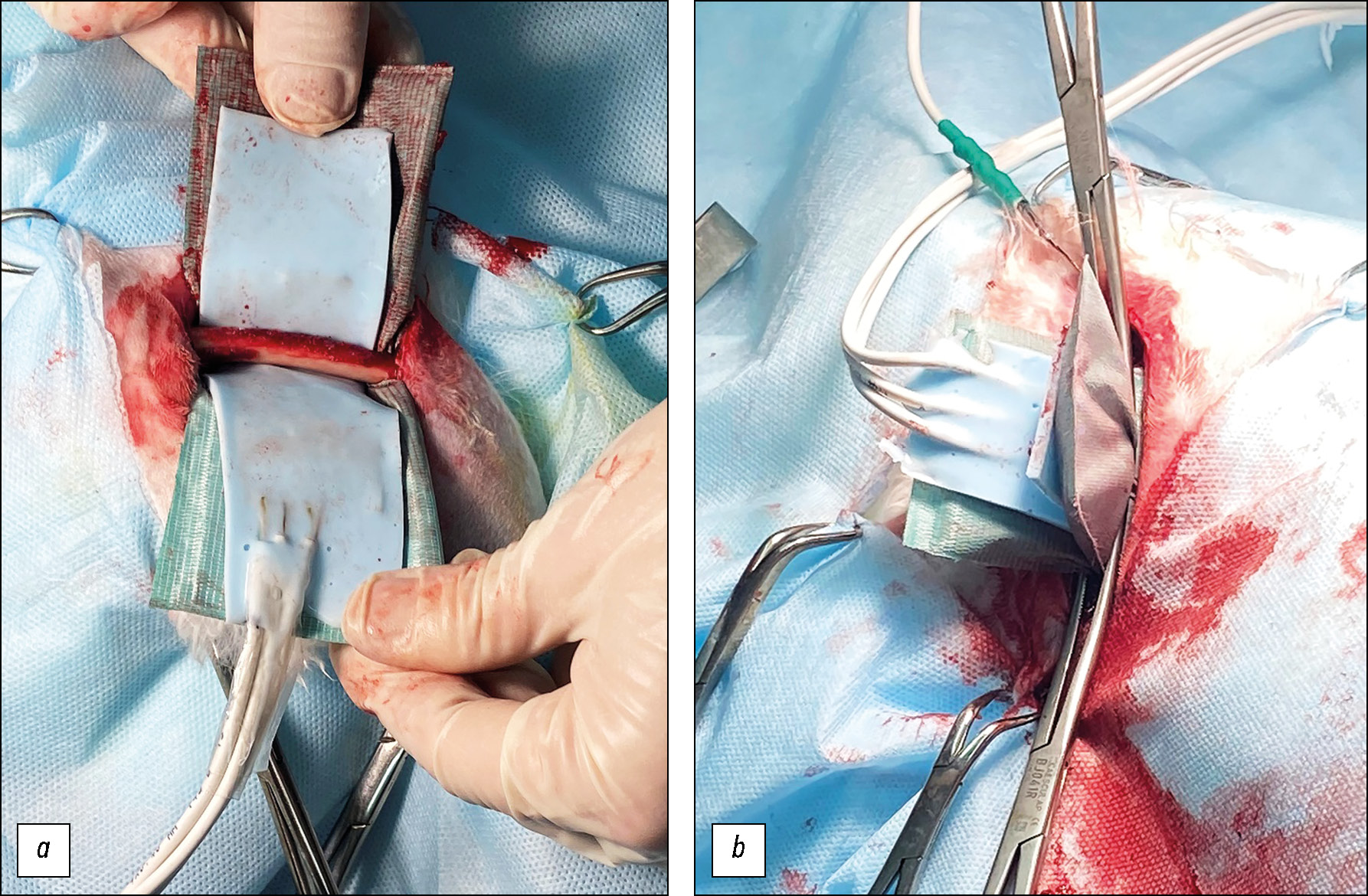

Fig. 1. Thermoablation: a — application of a heater and thermal insulating pad; b — bone heating.
Thermoablation (Fig. 1) was then performed following the established parameters (Table 1). Since the mean temperature in the medullary canal did not differ statistically between experimental groups during heating, a comparative dynamic assessment was feasible at 3 and 7 days post-surgery (Table 1).
Table 1. Experiment parameters
Group | Mean temperature, °C | Observation period after exposure, days |
1 (n=3) | 55,8±0,9 | 3 |
2 (n=3) | 57,4±1,0 | 7 |
Note. The data are presented as the sample mean and sample standard deviation — M±SD; n — the number of animals in each group.
Temperature readings in the medullary canal were recorded at one-minute intervals. The total exposure time was 20 minutes from the moment the lower threshold of the target temperature range was reached. The stabilization period to achieve an external (under the heater cuff) temperature of 60–65 ℃ was 3–5 minutes. After sensor insertion and upon completion of thermoablation, the skeletonized bone surface and surrounding soft tissues were rinsed with an antiseptic solution (Miraxiderm Tris, MIRALEK, Russia) and saline (Bionit, Russia). The surgical wound was then closed in layers with interrupted sutures using Vicryl 3/0 (Ethicon, Johnson & Johnson, USA): first the muscles, then the subcutaneous tissue, and finally the skin. A fine aluminum powder-based antiseptic (Aluminium Spray, Nicovet, Germany) was applied to the postoperative wound.
For five days post-surgery, all rabbits received intramuscular injections of: enrofloxacin (Doctor VIC, Belarus) at a dose of 5 mg/kg (antibiotic); meloxicam (Pharmstandard – UfaVITA, Russia) at a dose of 0.2 mg/ kg (analgesic). The animals were euthanized using carbon dioxide asphyxiation: Group 1, 3 days after thermoablation; Group 2, 7 days after thermoablation.
Primary study outcome
A comparative analysis of morphofunctional damage characteristics in osteoblasts and osteocytes on histological sections of the rabbit femoral diaphysis on Days 3 and 7 after local intraoperative hyperthermic ablation.
Group analysis
The study was conducted on crossbred rabbits of the same age, randomly assigned to two experimental groups. A comparative analysis of study outcomes was performed on Day 3 (n=3, Group 1) and Day 7 (n=3, Group 2) after local intraoperative hyperthermic ablation of the femur. The contralateral (intact) limb of each rabbit served as an intragroup control. Variational statistical methods were used for intergroup comparisons of independent sample indicators.
Methods of recording outcomes
Histological analysis of rabbit femurs was performed at the Department of Morphology and General Pathology of the Siberian State Medical University (Tomsk, Russia). Extracted intact and heat-exposed femurs were fixed in a 10% buffered aqueous formalin solution (pH 7.4, Biovitrum, Russia) for at least 24 hours at room temperature. Next, diaphyseal and proximal metaphyseal sections were isolated (Fig. 2), rinsed in tap water for 24 hours, and decalcified using a modified Grip’s method. The decalcifying solution was a 1:1 mixture of 20% aqueous formic acid solution (Kupavnareaktiv, China) and 20% aqueous sodium acetate solution (Kupavnareaktiv, China), which was refreshed every two days for six days. The use of formic acid in the decalcifying mixture minimizes its impact on tissue staining properties [6]. The decalcified bone fragments were then placed in a 10% sodium sulfate solution (LenReaktiv, Russia) for 24 hours at room temperature, followed by a second 24-hour rinse in tap water at room temperature. The bone fragments were dehydrated through six isopropanol-based solution changes (IsoPrep, Biovitrum, Russia) following the manufacturer’s protocol and embedded in HISTOMIX paraffin (Biovitrum, Russia). Bone paraffin sections (5–7 µm thick) were prepared using a semi-automatic microtome MZP 01 (Technom, Russia) and mounted on glass slides. The slides were stained with Gill’s hematoxylin (Biovitrum, Russia) and eosin (Biovitrum, Russia) using a standard protocol. The effects of high-temperature exposure on bone structures were assessed by comparing them with tissues from the contralateral limb of the same rabbit.

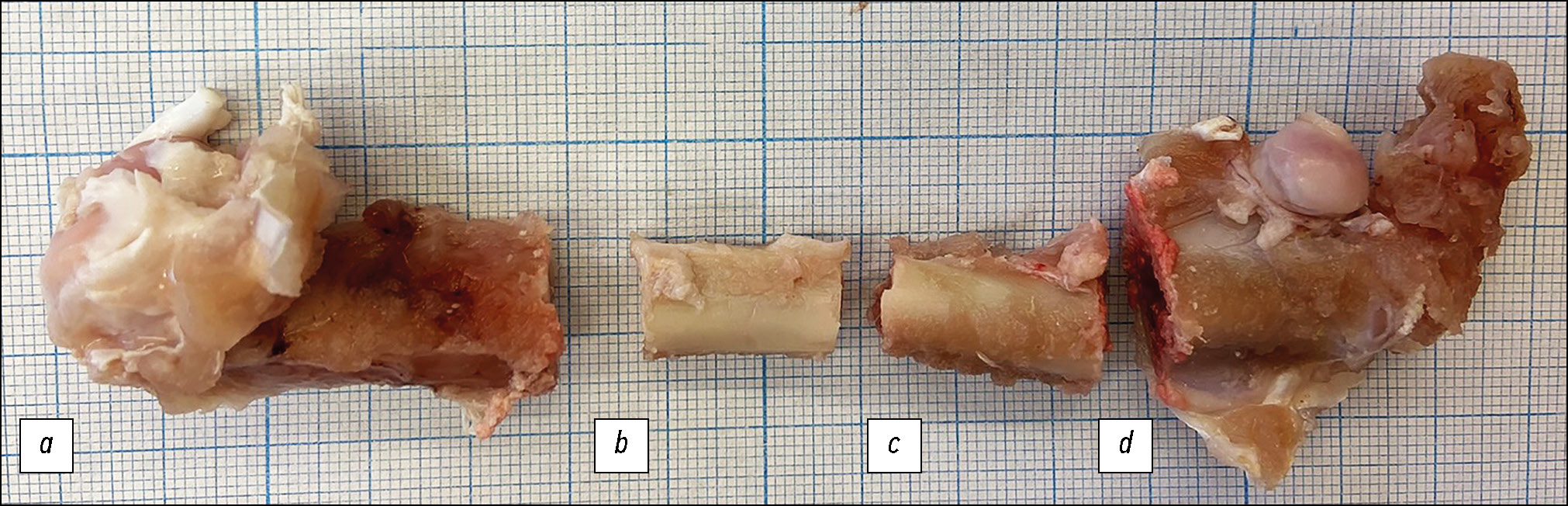

Fig. 2. Bone fragmentation scheme: a — distal epiphysis and metaphysis; b — diaphysis; c — proximal metaphysis; d — proximal epiphysis.
The state of the intercellular bone matrix was evaluated on histological sections stained using the Mallory method(Labiko, Russia) in accordance with the manufacturer’s recommendations. During staining, the collagen component of the non-mineralized bone matrix binds sequentially to phosphomolybdic acid and aniline blue, acquiring a dark blue color, whereas the mineralized bone matrix, which contains fewer collagen fibers, is stained red with fuchsin. Additionally, Einarson staining was performed as described in the literature [7]. Einarson’s histochemical staining method allows for the assessment of osteoblast and osteocyte synthetic activity by visualizing nucleic acids within cells and evaluating their content in the nucleus and cytoplasm. This method is highly specific for nucleic acids, especially under acidic conditions [8]. In this study, all histological preparations were produced under identical conditions, ensuring that observed differences in morphofunctional characteristics reflect genuine tissue structural changes.
Histological preparations of the bones were examined using an Axioscope 40 light microscope (Zeiss, Germany). Digital photomicrographs were captured under standardized lighting conditions using a Canon PowerShot A2200 camera (14.1 MP, Canon Inc., China) and processed with AxioVision 4.8 software (Zeiss, Germany).
The area and optical density of stained regions of interest were assessed using computerized morphometry of digital images [9] with ImageJ software (version 1.38, National Institutes of Health, Bethesda, USA). Optical density measurements provided a quantitative characteristic of the opaque object using the formula:
D = 100 × log10 (SF ÷ ST)
where SF is the background brightness; ST is the brightness of the analyzed cell or tissue area in grayscale mode.
Ethical approval
The study design was approved by the IACUC Committee of the Central Research Laboratory of the Siberian State Medical University (Approval No. 1, April 3, 2023) and was deemed to comply with fundamental bioethical requirements.
Statistical analysis
Statistical analysis was conducted in RStudio (v. 2023.12.0 + 369) using the R programming language (version 4.4.0) and the following packages: MVN [10], stats [11], brunnermunzel [12]. Quantitative variables were tested for normality using the Shapiro-Wilk test with Royston’s correction for large samples (Royston AS R94, 3≤n≤5000) [13].
Normally distributed quantitative variables are presented as the mean ± standard deviation (M ± SD); non-normally distributed quantitative variables are presented as the median and interquartile range (Me [Q1; Q3]).
Mean values of normally distributed quantitative variables were compared using the Smith-Welch-Satterthwaite test [14–20]. For non-normally distributed quantitative variables, the Brunner-Munzel test was used [21–24].
RESULTS
Study objects
The study involved histological examination of thin sections of rabbit femoral bones (6 thermally ablated and 6 contralateral) divided into two groups (n = 3 per group) based on the duration of the recovery period. A total of 24 sections per rabbit were analyzed: 4 sections of each femur stained using three different methods—hematoxylin and eosin (H&E), Mallory’s method, and Einarson’s method. Morphometric measurements were performed on at least 30 individual cells (osteoblasts, osteocytes) or regions of interest.
Primary study results
In the control (contralateral, intact) femur, no signs of necrotic or inflammatory processes were observed in histological sections stained with hematoxylin and eosin at different recovery time points following intraoperative thermoablation. The compact bone tissue in the diaphysis was primarily composed of lamellar bone, and the bone marrow canal was filled with red bone marrow containing hematopoietic cells (Fig. 3a, b). The periosteum covered the outer bone surface and was connected to striated muscle fibers of typical structure (Fig. 3c). Numerous osteoblasts with morphological features of high synthetic activity were observed in periosteal cavities, characterized by a cylindrical cell shape, large volume, basophilic cytoplasm, and apically positioned nucleus (Fig. 3d).
Fig 3. A section of an intact bone diaphysis: a, b — rabbit from group 1, lamellar bone tissue of the compact bone substance and red bone marrow in the medullary canal; c, d — rabbit from group 2, c — compact bone substance in the periosteal zone, striated muscle fibers of typical structure; d — numerous osteoblasts with morphological signs of high synthetic activity in the periosteal zone of bone (indicated by arrow). Hematoxylin and eosin staining, magnification: a, c — ×50; b, d — ×200.
Microscopic examination of H&E-stained sections revealed that localized hyperthermia (60–65°C under the heating cuff) did not cause significant distant damage to the contralateral femur within the observation period. This finding allows the morphometric parameters of the contralateral femurs to be used as control values (Table 2).
Table 2. Morphometric indices of bone tissue state in contralateral control diaphysis of rabbits subjected to local thermoablation at an average medullary canal temperature of 55–60 ℃
Parameter | Group ١ (Day ٣) n=3 | Group ٢ (Day ٧) n=3 | Statistical significance level |
Relative area of non-mineralized bone matrix | 29,93±13,28 n1=30 | 45,94±22,10 n1=30 | Welch’s t-test, t=3.40; p=0.0014 * |
Optical density of osteoblast cytoplasm, AU | 5,80±1,68 # n1=31 | 9,24±2,75 # n1=38 | Welch’s t-test, t=6.38; р <0.001 * |
Osteoblast cytoplasm area, µm2 | n1=31 | n1=38 | Brunner-Munzel test, Brunner–Munzel Test Statistic = 2.31; p=0.025 * |
Optical density of osteocyte nucleus, AU | n1=60 | n1=60 | Brunner-Munzel test, Brunner Munzel Test Statistic = 6.00; р=<0.001 * |
Osteocyte nucleus area, µm2 | n1=60 | n1=60 | Brunner-Munzel test, Brunner–Munzel Test Statistic = 16.94; p <0.001 * |
Note. The data are presented as the sample mean and sample standard deviation — M±SD or as the median and the first and third quartiles — Me[Q1; Q3]; n — the number of animals in each group; у.е.о.п. (n.u.o.p.) — nominal units of optical density; n1 — the number of examined areas or cells in each group; # — statistically significant differences with the diaphysis of the femurs subjected to thermal ablations, Brunner–Munzel criterion, p <0.05; * — statistically significant differences between groups 1 and 2.
In the diaphyseal region of the thermally treated femurs, hematoma-like hemorrhages (Fig. 4a) and/or plasmastasis in the bone marrow canal near the endosteum (Fig. 4c) were observed. By Day 3, numerous empty osteocyte lacunae were present in the compact bone (Fig. 4b). By Day 7, in addition to empty osteocyte lacunae, destruction of the intercellular bone and cartilage matrix was observed in areas of perichondral osteogenesis (Fig. 4d). In both cases, these changes predominantly affected the periosteal region beneath the heating cuff. Since the flexible heating cuff was applied from the periosteal side, the observed empty lacunae suggest that periosteal temperatures were higher than those in the bone marrow canal.
Fig. 4. A section of the femoral diaphysis after thermoablation at a temperature of 55–60℃ in the medullary canal: a, b — rabbit from group 1 three days after heating; a — hematoma-type hemorrhages in the medullary canal (indicated by arrow); b — numerous deserted osteocyte lacunae in the periosteal zone of the bone (indicated by arrows); c, d — rabbit from group 2 seven days after heating; c — plasmostasis in the medullary canal near the endosteum (indicated by arrow); d — areas of destruction of intercellular bone and cartilage matrix in the periosteal zone of the bone (indicated by arrows). Hematoxylin and eosin staining, magnification: a, c — ×50; b, d — ×200.
In the proximal metaphysis, outside the direct heating zone, mechanical trauma was observed (Fig. 5a), attributed to temperature sensor insertion before heating. At the sensor insertion site (periosteal side), large amounts of cartilaginous and coarse-fibered bone tissue were formed (Fig. 5b). Numerous active osteoblasts and large osteoclasts were present in the periosteal and endosteal regions (Fig. 5c, d). Thus, by Day 7, active proliferation of bone and cartilage cells in the metaphyseal region could contribute to diaphyseal regeneration via osteoblast migration.
Fig. 5. A section through the proximal metaphysis of the rabbit femur seven days after heating the diaphysis to a temperature of 55–60 ℃ in the medullary canal: a — signs of mechanical trauma; a, b, d — hemorrhages; b — cartilage overgrowth (indicated by arrow); e — coarse fibrous bone overgrowth in the periosteal zone of the bone; c — numerous osteoblasts and large osteoclasts in the periosteal zone; d — numerous osteoblasts and large osteoclasts in the and endosteal zone of the bone. Staining: a–d — haematoxylin and eosin; e — Mallory’s staining; magnification: a, b — ×50; c, d, e — ×200.
Mallory staining revealed proliferation of coarse-fibered bone tissue in the periosteal zone of the proximal metaphysis (Fig. 5e). In the direct heating area (diaphysis), no visible evidence of severe thermoablation-induced damage to the intercellular bone matrix was detected compared to the contralateral limb. Osteoid fibers remained densely packed, and clear boundaries between bone lamellae in the compact bone were visible (Fig. 6). In Group 1 (Day 3) (Fig. 6a), mineralized matrix areas predominated compared to Group 2 (Day 7) (Fig. 6b), which was confirmed by computerized morphometry (Table 2).
Fig. 6. A section through the diaphysis of femur: a, c — intact bone; a — rabbit from group 1; c — rabbit from group 2; b, d — diaphysis of rabbit bone after heating at a temperature of 55–60 ℃ in the medullary canal; b — rabbit from group 1 three days after heating; d — rabbit from group 2 seven days after heating; a–d — bone plates of compact bone substance with clear boundaries, fibrous components of osteoid tightly adhering to each other. Mallory staining, magnification ×200.
Einarson staining identified osteoblasts with high synthetic activity in the endosteal region. Large, polarized cells adhering to the bone surface with evenly distributed cytoplasmic RNA were evident, as indicated by intense staining (Fig. 7). Changes in relative optical density of osteoblast cytoplasm suggest altered synthetic activity and osteoid production capacity [25].
Fig. 7. A section through the femoral diaphysis in the endosteal zone: a — intact bone of rabbit from group 1; c — intact bone of rabbit from group 2; b — femur of group 1 three days after heating; d — femur of rabbit from group 2 seven days after heating at a temperature in the medullary canal of 55–60 ℃.; a, c — osteoblasts with morphological signs of high synthetic activity (indicated by arrows); b, d — osteoblasts with morphological signs of low synthetic activity (indicated by arrows). Einarson staining, magnification ×630.
Since the study was conducted on non-inbred rabbits, statistically significant differences in collagen matrix structure and other morphometric characteristics were observed between groups (Table 2). Consequently, absolute values of parameters such as non-mineralized bone matrix area, osteoblast cytoplasm area, and optical density of osteoblast cytoplasm and osteocyte nuclei were not directly comparable. Therefore, a personalized statistical analysis approach was applied, standardizing values and comparing relative measurements. The dynamics of recovery after thermoablation are expressed as percentages relative to the intact femur (Table 3). The results indicate that in the direct heating zone (diaphysis), the proportion of non-mineralized bone matrix (Mallory staining) did not differ significantly from the contralateral femur at different recovery time points. Thus, at a thermoablation temperature of 60–65°C (with intramedullary temperature of 55–60°C), early regeneration-related changes in fibrous components are minimal due to the slow turnover rate of lamellar bone [25].
Table 3. Comparison of morphometric indices of rabbit femoral diaphysis at different times after local thermoablation at an average medullary canal temperature 55–60 ℃, in % of values for the contralateral diaphysis
Parameter | Group ١ (Day ٣) n=3 | Group ٢ (Day ٧) n=3 | Statistical significance level |
Relative area of non-mineralized bone matrix, % | 109,59±42,47 n1=30 | 114,14±40,93 n1=30 | Welch’s t-test, t=٠.٤٢; р=٠.٦٧ |
Optical density of osteoblast cytoplasm, % | n1=35 | n1=32 | Brunner-Munzel test, Brunner–Munzel Test Statistic=2.76; p=0.00028 * |
Osteoblast cytoplasm area, % | 102,04±28,89 n1=35 | 130,94±34,95 # n1=32 | Welch’s t-test, t=3,67; p=0,00052 * |
Optical density of osteocyte nucleus, % | 94,76±14,69 # n1=60 | 90,00±30,79 # n1=60 | Welch’s t-test, t=-1,08; p=0,28 |
Osteocyte nucleus area, % | n1=60 | n1=60 | Brunner-Munzel test, Brunner–Munzel Test Statistic =-15,43; p <0,001 * |
Note. The data are presented as the sample mean and sample standard deviation — M±SD or as the median and the first and third quartiles — Me[Q1; Q3]; n — the number of animals in each group; n1 — the number of examined areas or cells in each group; # — statistically significant differences with the corresponding control (intact diaphyses, Table 2, Brunner–Munzel criteria, p <0.05); * — statistically significant differences between groups 1 and 2.
Morphometric assessment of osteoblasts in Einarson-stained sections (Fig. 7, Table 3) revealed a significant reduction in optical density and, consequently, synthetic activity in heated diaphyses. By Day 3, osteoblast cytoplasm optical density was 47.88% [41.94; 55.03] of the level in the intact bone. By Day 7, it further decreased to 39.31% [34.60; 51.33], which was significantly lower than on Day 3 (p=0.00028). However, osteoblast cytoplasm area (Table 3) remained unchanged by Day 3 (102.04% ± 28.89% relative to the intact diaphysis), but increased to 131% of the contralateral limb by Day 7 (p=0.0034), which was significantly higher than the Day 3 value (p=0.00052). This suggests that by Day 7, there was a higher proportion of larger, younger osteoblasts, likely due to migration from the metaphyseal defect caused by temperature sensor insertion.
During staining histological sections of rabbit femurs using the Einarson method, information was obtained regarding the presence of DNA molecules in osteocyte nuclei and, to a lesser extent, RNA. Since osteocytes are a conserved cell population with low synthetic activity, nucleic acids were predominantly visualized in nuclei, while cytoplasm remained unstained (Fig. 8a, c). In the diaphysis of the femur of the intact limb in Group 1 rabbits, the compact bone is predominantly composed of parallel-arranged bone lamellae. Lacunae containing osteocytes with large, round nuclei, which stain intensely using the Einarson method, are visible between the lamellae (Fig. 8a). In the compact bone of the intact femur in Group 2, osteocytes with elongated, spindle-shaped nuclei are more frequently observed (Fig. 8c). In the compact bone of heat-exposed femurs (Fig. 8b, d), on Days 3 and 7, empty osteocyte lacunae or osteocytes with elongated, spindle-shaped nuclei with a visibly smaller staining area and lower optical density of the nuclei, compared to the corresponding intact diaphysis (Fig. 8a, c), were observed.
Fig. 8. A section through the compact substance of the femoral diaphysis: a — intact bone of rabbit from group 1, osteocytes with large, round, intensely stained nuclei (indicated by arrows); c — intact bone of rabbit from group 2, osteocytes with fusiform, intensely stained nuclei (indicated by arrows); b — femoral diaphysis of rabbit from group 1 three days after heating at a temperature in the medullary canal of 55–60 ℃, deserted osteocyte lacunae (indicated by arrow); d — femoral diaphysis of rabbit from group 2 seven days after heating, osteocytes with less intensely stained fusiform nuclei (indicated by arrows). Osteocyte staining by the Einarson method, magnification ×630.
Computerized morphometry (Table 3) demonstrated a similar reduction (p=0.28) in osteocyte optical density in heated diaphyses across both groups. However, optical density in heated femurs was significantly lower than in contralateral diaphyses (Brunner-Munzel test, p<0.05). By Day 3 after hyperthermic exposure, the osteocyte area sharply decreases to 46.84% [42.29; 53.29] of the level in the contralateral bone. However, by Day 7, their size nearly returns to baseline values, reaching 108% of the measurement in the contralateral femur. This suggests rapid osteocyte population renewal, likely driven by larger, younger cells with low synthetic activity, similar to osteoblasts.
DISCUSSION
Summary of the primary study results
Histological sections of rabbit femoral diaphyses stained with hematoxylin and eosin after high-temperature exposure showed signs of pathological cellular changes, including osteocyte denucleation and empty bone lacunae. Morphometric analysis of Einarson-stained sections revealed an increase in osteoblast area by Day 7, despite a decline in their synthetic activity, which was already evident by Day 3. By Day 3, osteocyte nuclei area and optical density decreased in thermally ablated femoral diaphyses. However, by Day 7, the osteocyte nuclei area in mature bone cells returned to values comparable to the contralateral limb. The reduction in nuclear area alongside decreased optical density suggests the development of colliquative necrosis of osteocytes.
Discussion of the primary study results
The early postoperative period, spanning several days post-surgery, is crucial for bone healing during osteosynthesis and endoprosthetic procedures [26]. Therefore, the present study focused on early-stage post-surgical bone regeneration following localized thermoablation in non-inbred rabbits, an animal model widely used in bone and joint tissue research [27].
Our study revealed significant variability in morphometric parameters of femoral bones not directly subjected to thermoablation, which mirrors interindividual variations in human bone tissue [28]. However, the contralateral femoral diaphysis of rabbits undergoing localized thermoablation should be considered only conditionally intact. In Group 2 (Day 7 post-hyperthermia), higher regeneration markers (e.g., osteoblast cytoplasm optical density and area) were observed compared to Group 1 (Day 3), whereas osteocyte morphometric parameters declined (Table 2). Based on these findings, we propose a hypothesis of distant thermoablation effects on bone tissue, potentially mediated by bioactive substances released during direct hyperthermia of the opposite femoral diaphysis. Transforming growth factor-beta (TGF-β) and insulin-like growth factor 1 (IGF-1) are known to be released from the bone matrix during resorption and stimulate osteoblastic differentiation of mesenchymal stem cells [29–31]. Pro-inflammatory cytokines (e.g., IL-1, IL-6) secreted into circulation during extreme conditions [32] can also induce bone regeneration, particularly in hematoma formation scenarios [33].
Given this context, statistical processing and comparisons were conducted following the principles of personalized biomedicine. For each animal, morphometric indices were normalized to contralateral values, which served as internal controls (Table 3).
According to Einarson’s highly specific nucleic acid staining method [8], by Day 7 post-direct thermoablation, osteoblast cytoplasmic area increased by 30% compared to the control, along with osteocyte area expansion. We hypothesize that rapid osteoblast population turnover in heated diaphyses is facilitated by migration of young cells from unaffected femoral regions.
By Day 7, pronounced reparative regeneration and hyperplasia of cartilaginous and coarse-fibered bone tissue were observed in the mechanical defect zone in the metaphysis, particularly from the periosteal side (Fig. 5). This is likely linked to hematoma formation, both in the diaphysis (Fig. 4a) and in the metaphyseal defect zone created by temperature sensor insertion (Fig. 5a, b, d). Hematomas are essential for bone regeneration [34], as they exhibit osteogenic [35] and angiogenic properties [36], mediated by their cellular composition and biologically active molecules essential for tissue healing [37].
Early reparative regeneration in the non-heated metaphyseal region may serve as a source of migrating mesenchymal stromal stem cells and (pre)osteoblasts, which travel along the endocortical surface toward lamellar bone diaphysis restoration. However, osteoblast synthetic activity remained reduced in both the 3-day and 7-day recovery periods following localized intraoperative hyperthermic ablation at 55–60°C in the medullary canal. This may be attributed to persistent thermal damage to bone cells and a predominance of cellular migration over differentiation, ensuring rapid restoration of bone mass similar to hematopoietic system regeneration.
The significant changes in nucleic acid content, primarily RNA, in osteoblast cytoplasm post-direct thermal exposure suggest that nucleic acids may serve as primary targets of high-temperature-induced cellular shock. Thermal shock is known to disrupt RNA synthesis, processing, and transport [38]. In vitro studies have shown that brief (10 min) hyperthermia at 42 °C causes denaturation and condensation of ribosomal RNA, leading to polysome disassembly into single organelles [39]. Additionally, hyperthermia disrupts mRNA structure [40].
Study limitations
The significant morphometric variability in rabbit femoral diaphyses not subjected to direct thermoablation necessitated reporting results in relative (percentage) units. Differences in contralateral control bone tissue status may stem from: variability in physiological bone regeneration rates among non-inbred rabbits; distant systemic effects of intraoperative thermoablation on the opposite limb in the early post-hyperthermic period. Nevertheless, the comparative findings of this study are highly valuable, as they describe the localized effects of thermoablation while accounting for its potential systemic influence through integral regulatory mechanisms.
CONCLUSION
Thermoablation is considered a promising method for the treatment of bone tumors, provided that the anatomical integrity of the bone and its regenerative capacity are preserved. Ex vivo studies have demonstrated moderate thermal damage to human bone tissue while maintaining its mechanical strength after hyperthermia at 60–70 °C [4]. Therefore, investigating the in vivo response of rabbit bone tissue following local intraoperative hyperthermic ablation in the 55–60 °C range in the medullary canal has significant scientific and practical interest.
The early postoperative period (within a few days after surgery) is considered critical for bone healing following osteosynthesis and endoprosthetic procedures [26]. The dynamic in vivo study of rabbit bone tissue in the early recovery phase (Day 3 and Day 7) after local intraoperative thermoablation of the femoral diaphysis revealed no changes in the percentage ratio of non-mineralized to mineralized matrix in lamellar bone, regardless of the recovery period. This may be due to the mild damaging effect of the selected temperature range on the fibrous component of bone tissue, the slow turnover rate of lamellar bone and/or the low sensitivity of the staining method used.
However, by Day 7 post-hyperthermia, hematoxylin and eosin staining revealed empty osteocyte lacunae and denucleation of mature bone cells, which are morphological markers of cell death through apoptosis and/or necrosis. Significant changes in bone cells were also detected using Einarson’s nucleic acid staining. In the thermoablated diaphyseal zone, there was a marked decrease in the optical density of osteoblast cytoplasm (by 50%–60%) and osteocytes (by 5%–10%), indicating the damaging effects of thermoablation at 55–60 °C on cellular metabolism and intracellular organelles of healthy bone cells, primarily the nucleus and ribosomes, which regulate synthetic activity.
At the same time, the appearance of enchondral osteogenesis sites in the periosteal zone indicates the initiation of remodeling in the thermoablated area. Among other factors, such remodeling may be associated with reparative regeneration induced by mechanical trauma in the metaphyseal region following the insertion of the thermal sensor. Tumor cell nucleic acids are also highly sensitive to heat [38]. Therefore, the preservation of bone regenerative capacity at a 55–60 °C exposure, coupled with the death and suppression of synthetic activity in both healthy and tumor cells, may provide an effective strategy for tumor eradication, given the higher thermal sensitivity of malignant cells within this temperature range.
ADDITIONAL INFORMATION
Funding source. This work was financially supported by the Ministry of Science and Higher Education of the Russian Federation, project number FEWM-2024-0003.
Competing interests. The authors declare that they have no competing interests.
Authors’ contribution. All authors made a substantial contribution to the conception of the work, acquisition, analysis, interpretation of data for the work, drafting and revising the work, final approval of the version to be published and agree to be accountable for all aspects of the work. A.V. Gorokhova — experimental procedures, collection and analysis of literature sources, writing and editing the article; T.F. Nasibov — histological study, statistical analysis of data; E.D. Porokhova — experimental procedures, histological study; U.A. Bariev — histological study and morphometric analysis of data; V.E. Nosov — experimental procedures; D.O. Pakhmurin — experimental procedures; I.I. Anisenya — experimental procedures; P.K. Sitnikov — experimental procedures; I.A. Khlusov — collection and analysis of literary sources, writing and editing the article.
1 Ambient conditions are standard, loosely controlled environmental conditions including temperature, lighting, humidity, ventilation, and noise.
